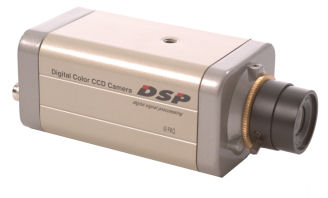

This camera has the highest resolution possible and with a .01 lux SONY imaging chip in it you have about the best camera on the market. And with the added capability of being able to see at very low light levels, you have a combo that cant be beat! Excellent choice for a DVR!

Notes:

• The lens is selected separately (see above).
• If you want to use this camera outdoors you need to put it in an outdoor housing. Keep in mind that the housings are not small, they are over a foot long. They look fine in an industrial or business application but may be inappropriate for some residential applications.
• For more info on calculating field of view, check out our Lens Calculator Tool.

Features:


• SONY 1/3" Super HAD CCD sensor
• Day/Night CCD
• 500 Resolution lines
• 2X digital zoom, mirror function

  Specifications:


• 1/3” Super HAD exview CCD
• Scanning System 525 lines, 60 field/sec
• 0.01 lux at F/1.2
• 500 TV lines
• White Balance ATW/AWB switchable
• Auto Gain Control AGC ON/OFF switchable
• S/N Ratio 52dB (MIN) / 60dB (TYP)(AGC OFF)
• Electronic Shutter 1/60-1/120,000sec.
• Auto Iris Video/DC/A.E.S.
• B.L.C. Function ON/OFF switchable
• Mirror Function ON/OFF switchable
• 2X Digital Zoom ON/OFF switchable
• Video Output 1.0 Vp-p at 75 ohm composite,
• Gamma Correction 0.45Operation Temp. -20c to +50c
• Lens Mount CS mount
• (C mount capable with adaptor)
• Power Source DC 12 V 150mA, AC 24V
• Dimensions 58(W) X 52(H) X 98(D) mm
• Weight 350g (0.77 lb)
• 12VDC power supply included in package
• 24VAC power supply compatible
