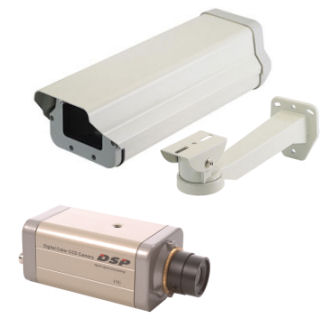

This kit includes everything you need to install the high resolution day / night c-mount camera outdoors - including the camera, lens, outdoor housing, and bracket for installation. This camera has the highest resolution possible giving you just about about the best camera on the market! Excellent choice for a DVR!

This camera kit comes standard with a 4mm lens however you can select a different lens if desired (see above).

Features:


• SONY 1/3" Super HAD CCD sensor
• Day/Night CCD
• 500 Resolution lines
• 2X digital zoom, mirror function

  Specifications:


• 1/3” Super HAD exview CCD
• Scanning System 525 lines, 60 field/sec
• 0.01 lux at F/1.2
• 500 TV lines
• White Balance ATW/AWB switchable
• Auto Gain Control AGC ON/OFF switchable
• S/N Ratio 52dB (MIN) / 60dB (TYP)(AGC OFF)
• Electronic Shutter 1/60-1/120,000sec.
• Auto Iris Video/DC/A.E.S.
• B.L.C. Function ON/OFF switchable
• Mirror Function ON/OFF switchable
• 2X Digital Zoom ON/OFF switchable
• Video Output 1.0 Vp-p at 75 ohm composite,
• Gamma Correction 0.45Operation Temp. -20c to +50c
• Lens Mount CS mount
• (C mount capable with adaptor)
• Power Source DC 12 V 150mA, AC 24V
• Dimensions 58(W) X 52(H) X 98(D) mm
• Weight 350g (0.77 lb)
• 12VDC power supply included in package
• 24VAC power supply may be also used

  Housing Specifications:


• Dimensions: 330mm(diameter) x 100mm(width) x 120mm(height) (From Peak = 385mm)
• Max Camera Size: 160mm(diameter) x 85mm(width) x 70mm(height)
• Window Area: 67mm x 57mm
• Plate Glass Weight: 2850 grams
