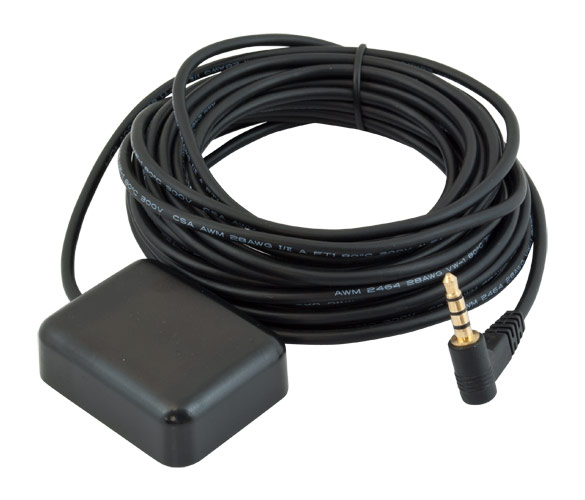

DMDVR-GPS - GPS Antenna Module for DMDVRAV

Product Description:

The MDVR-GPS is a high performance receiver module for the Global Positioning System (GPS) solution. It combines U-Blox 6 GPS single chip(UBX-G6010-ST), EEPROM, RS232 Transceiver IC,LNA circuit, SAW filter and Patch Antenna into a land grid array module. It can be easily plugged into a device for GPS communication.

Features:

• High Gain and low noise
• U-Blox 6 position engine with over 2 million effective correlators featuring < 1s acquisition, -147dBm cold start acquisition sensitivity and 5Hz update rate
• Intelligent, user configurable power management for radically lower power consumption
• Open sky cold start 29 second
• Signal detection better than -160dBm
• Reacquisition sensitivity –160dBm
• Accuracy 2.5m CEP
• Variable cable length and connectors are available
• Magnetic mounting
• RoHS compliance
• Water-resistance
• RS232/TTL/USB electrical level is available
• GPS Navigation Status LED
