DWPDVR16A - 16 Channel Analog Weatherproof DVR Solution

Your Price: $2,499.00

In Stock

Model Number: DWPDVR16A

Product Options

* denotes required field

Add wireless access point (DAP24)*

Add Pole Mount Bracket

Quantity:

Features
Specifications
Images
Support

Overview

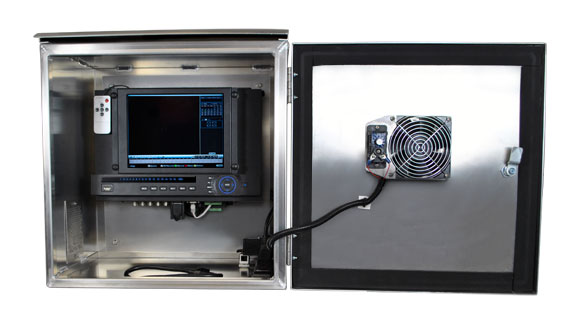

This 16 channel weatherproof DVR package includes everything you need for remote site recording. It includes a NEMA rated outdoor enclosure with fan, a full featured H.264 compression DVR for extended record time and faster network transmission, a 9 channel 12V power supply to power cameras and microphones, and 4 x 110V outlets for additional requirements such as 24V devices like heated housings or PTZ's. Additional options include a pole mount bracket and a 2.4 Ghz wireless bridge for transmitting distances up to 1.5 miles over wireless LAN. Access anywhere using the free VMS software or from smart phones and tablets using our free mobile app.

Features

Optiview full feature H.264 DVR
9CH 10Amp power supply
10" LCD Monitor
5052 Aluminum Enclosure
Fan with Thermostat Control
6-Outlet Power Supply
Includes CMS software (view up to 64 cameras)
CMS allows viewing of all VR Series DVRs & NVRs
Optional wireless bridge for up to 1.5 mile line of sight transmission (AP24)
1 Terabyte Hard Drive (included)
Universal Mounting Brackers (included)

Enclosure Specifications

Enclosure Material	5052 Aluminum
Enclosure Color	Silver / Metallic
Voltage	120V AC / Power Strip
Mounting Plate Material	Aluminum
Mounting Plate Dimensions	17" X 16"
Weight (box only)	41 lbs
Outside Dimensions	19" x 19" x 12"
Cable Feed	1.2'' cable conduit connector
Ratings	NEMA Type 3R

DVR Specifications

System

Main Processor

High performance embedded microprocessor

Operating System

Embedded LINUX

System Resources

Pentaplex function: live, recording, playback, backup & remote access

Control Mode

Touch pad, USB mouse, IR remote control, Keyboard, Network

Video

Input

8 channel, BNC (1.0Vp-p, 75Ω)

Standard

NTSC (525Line, 60f/s)

Output

1 TV, BNC (1.0Vp-p, 75Ω)

Audio

Input

8 channel, BNC (200-2000mV 10KΩ)

Output

1 channel, BNC (200-2000mV 10KΩ)

Display

Display Split

1/4/8/9

Resolution

1920×1080, 1280×1024, 1280×720, 1024×768

Tour Display

Support

Privacy Masking

4 self-defined four-sided zones for privacy masking for each camera

OSD

Camera title, time, video loss, camera lock, motion detection, recording

Recording

Video/Audio Compression

H.264 / G.711

Image Resolution

D1/4CIF (704×576/704×480) / CIF (352×288/352×240) / QCIF (176×144/176×120)

Encoding Speed

Main Stream: Full 2CIF (30fps) / 2ch@D1 + 6ch@CIF (30fps) / Full D1 (15fps)
Extra Stream: QCIF (1~30fps)

Bit Rate

32~4096Kb/s

Image Quality

CBR, VBR(1~6 level, level 6 is the best)

Recording Mode

Manual, Schedule (Regular(Continuous), MD (Video detection: Motion detection, Camera blank, Video loss), Alarm, Stop

Video Detection & Alarm

Trigger Events

Recording, PTZ movement, Tour, Alarm, Email, FTP, Buzzer & Screen tips

Motion Detection

Zones: 396 (22×18), Sensitivity: 1~6 (level 6 is highest)

Video Loss & Camera Blank

Support

Alarm Input

8 channel

Relay Output

3 channel

Playback & Backup

Playback Channel

1/2/4/8

Search Mode

Time/Date, Alarm, Motion Detection & Exact search (accurate to second)

Playback Functions

Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom(any size)

Backup Mode

Flash drive/ USB HDD/ USB CD/DVD-RW / Network download

Network

Ethernet

RJ-45 port (10/100/1000M)

Network Functions

TCP/IP, UDP, DHCP, DNS, IP Filter, PPPOE, DDNS, FTP, Email, Alarm Server

Remote Operation

Monitor, PTZ control, Playback, System setting, File download, Log information

Hard Disk

1 SATA port, Max 4TB HDD supported

HDD Management
